THE ASSIGNMENT

The primary packaging comes in cartons of different formats and need to be palletised. Double pallet labelling and individual customer SAP connection are required. The collection station should be AGV compatible and the plant made future-proof through scalability, i.e. so it can be expanded with additional pallet spaces as necessary.

THE SOLUTION

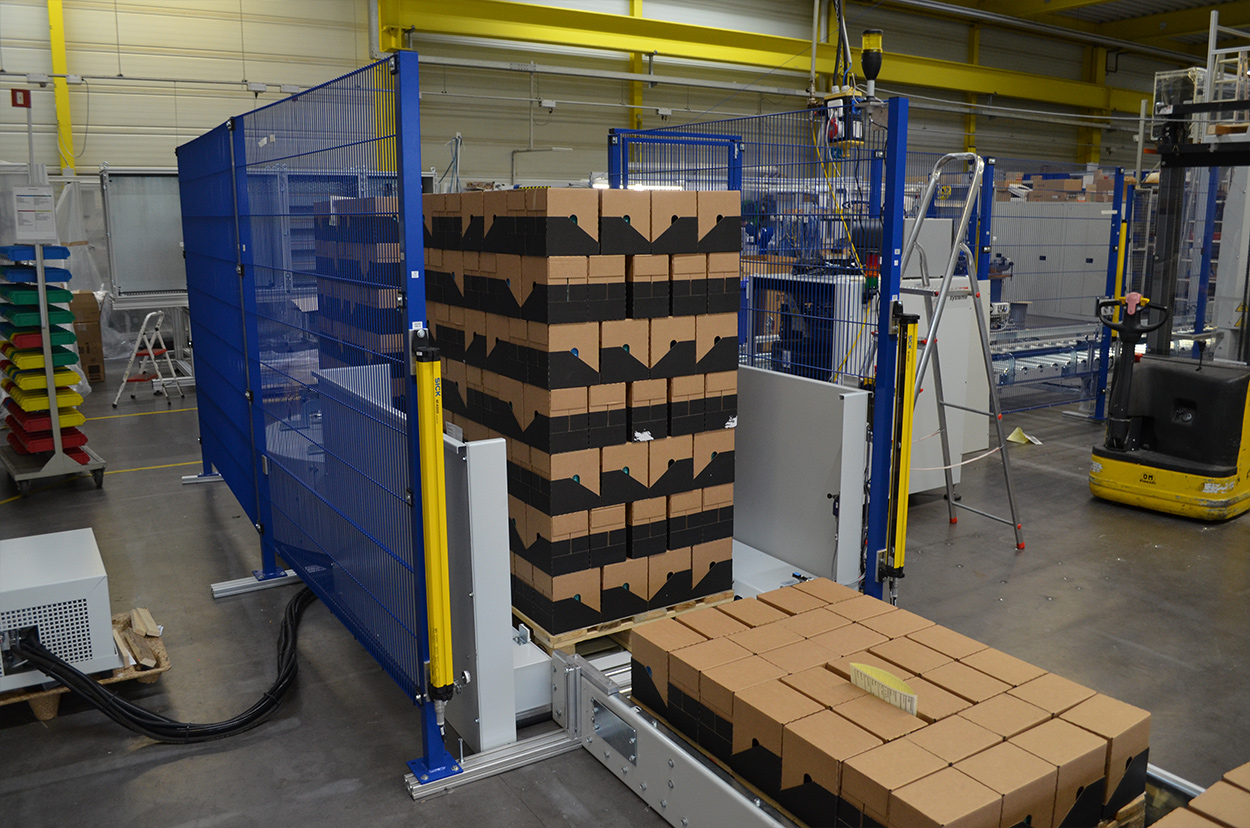

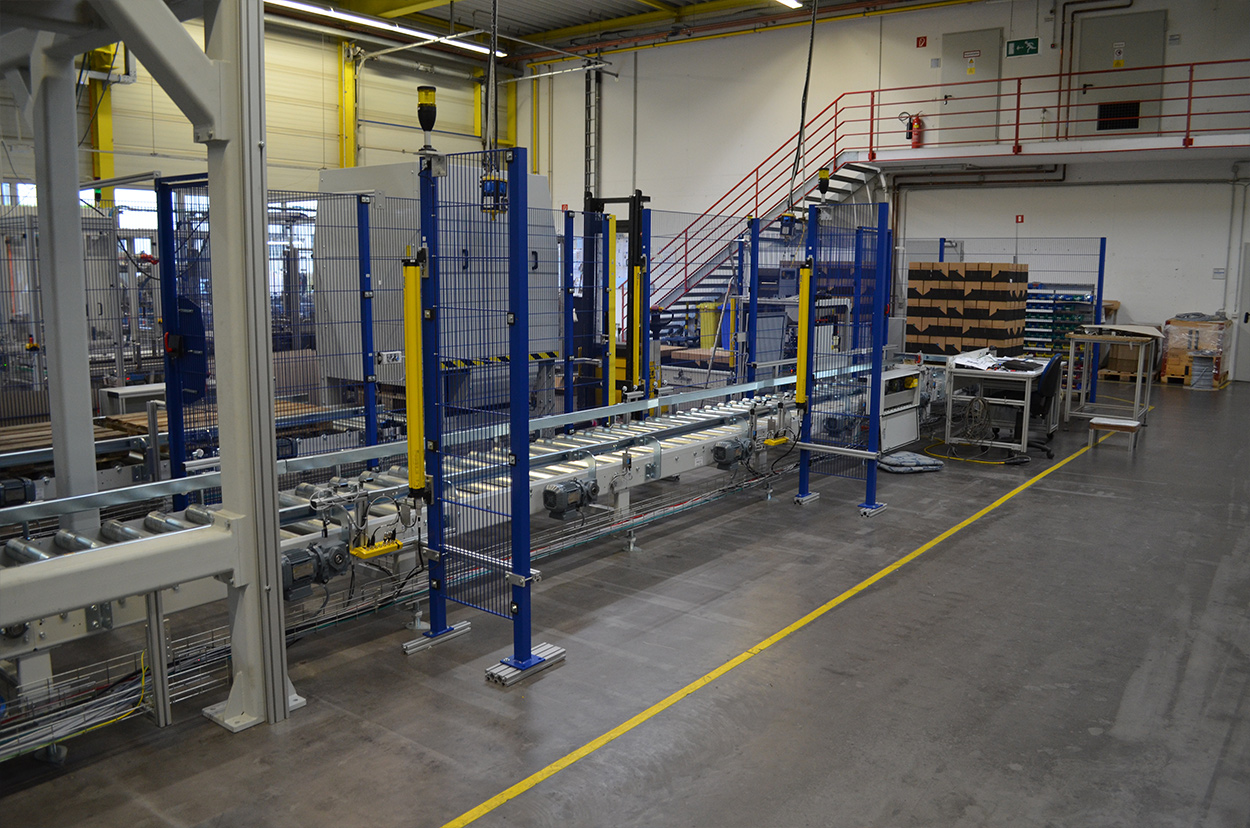

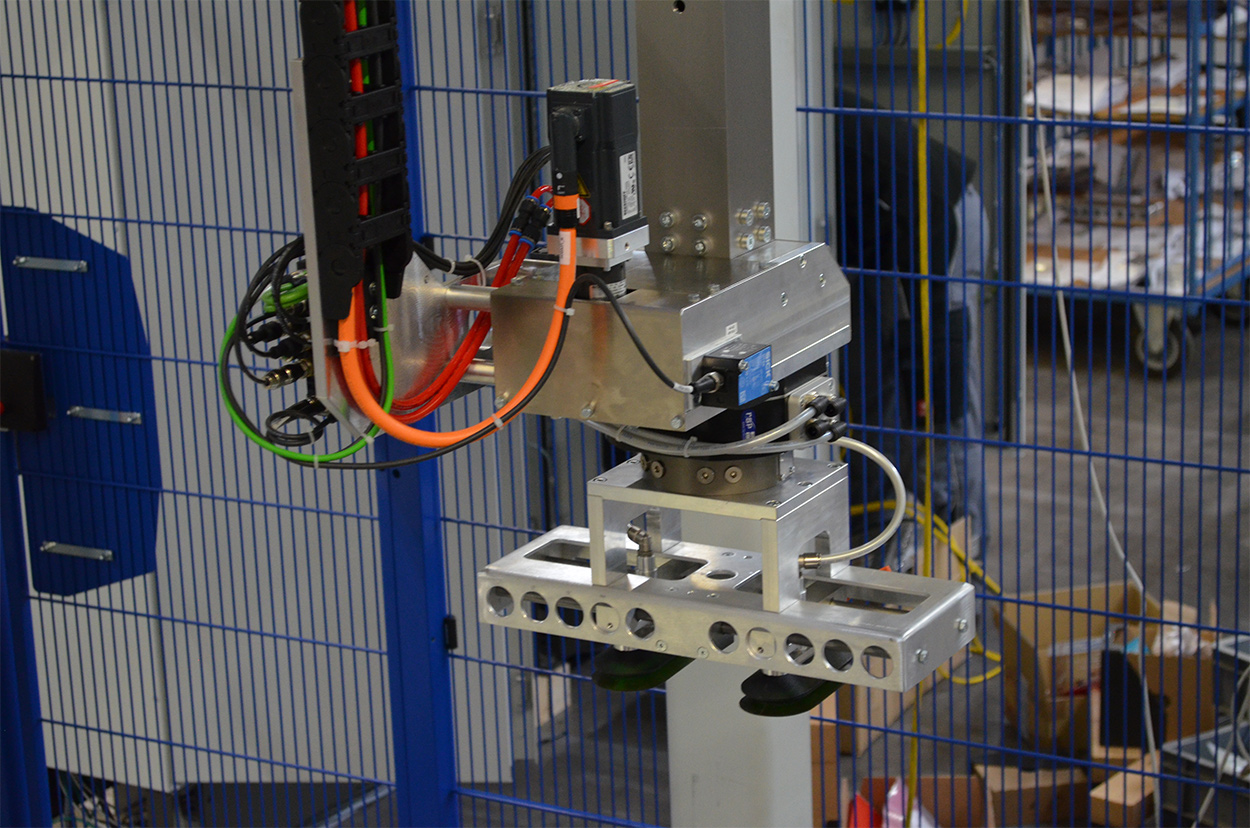

We developed a highly flexible palletising solution, which manages up to 20 cartons per minute including an optional intermediate layer. Autonomy was increased by integrating a fully automatic empty pallet magazine. A label printing dispenser system with a front and side applicator was integrated for the double labelling. Autonomously operating systems collect two pallets at the same time. We have provided interfaces to the modular expansion from a design perspective.
